95mm ACSR Bare Aluminum Conductor With High Tensile Strength Corrosion Resistance

Product Categories
Minfeng Cable Group Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

95mm ACSR Bare Aluminum Conductor With High Tensile Strength Corrosion Resistance

Insulating Material : Bare

Delivery Time : 10 Days

Exoprt Experience : South America, Africa, Middle East Ect

Payment Terms : L/C,T/T

Application : Power Transmission

Model Number : ACSR

Price : 0.1-5

Cores No : 1-36

Brand Name : Minfeng

Certification : ISO,CE,IEC,TUV,KEMA

MOQ : 100

Conductor Shape : Circular

Place of Origin : Hebei, China

Free Sample : yes

Material Of Conductor : Aluminium

Packaging Details : Wooden Drum

Supply Ability : 100KM/Week

Contact Now

95 mm Bare Aluminum Wires Electrical Heat Conductor ACSR 240/40 South Africa
ASTM 50mm 100mm² Overhead AAC ACSR Single Core Bare All Aluminum Conductor Wire Cable AAAC

Producing and providing products according to Chinese standard GB/T3954-2001, and consulting and following American standard ASTM B233:1997 and German DIN standard EN 17152:1997.

Material Composition

Note: When mechanical and electrical functions of products are qualified, the chemical element composition may not be the total checking criteria.

Name of Element Si Fe Cu V+Ti+Mn+Cr Other Al
Percentage % ≤0.11 0.25 0.01 0.02 0.03 ≥99.61
Surface Quality
  • Should be neat and well-distributed in dimension on surface of aluminum rod
  • Aluminum rod surface should be clean and free from flaws, wrinkles, wrong round, crackle, mess kink and other shortcomings affecting usage
  • Slightly mechanical rub speck, pit, losing leather or fing border are permitted within acceptable limits
95mm ACSR Bare Aluminum Conductor With High Tensile Strength Corrosion Resistance

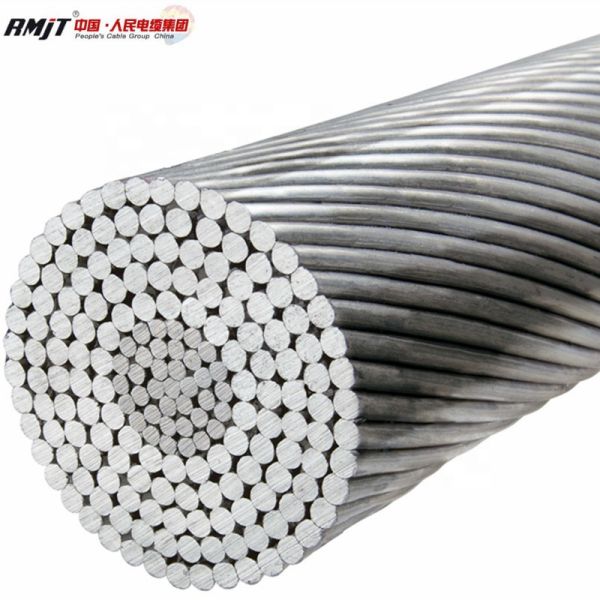

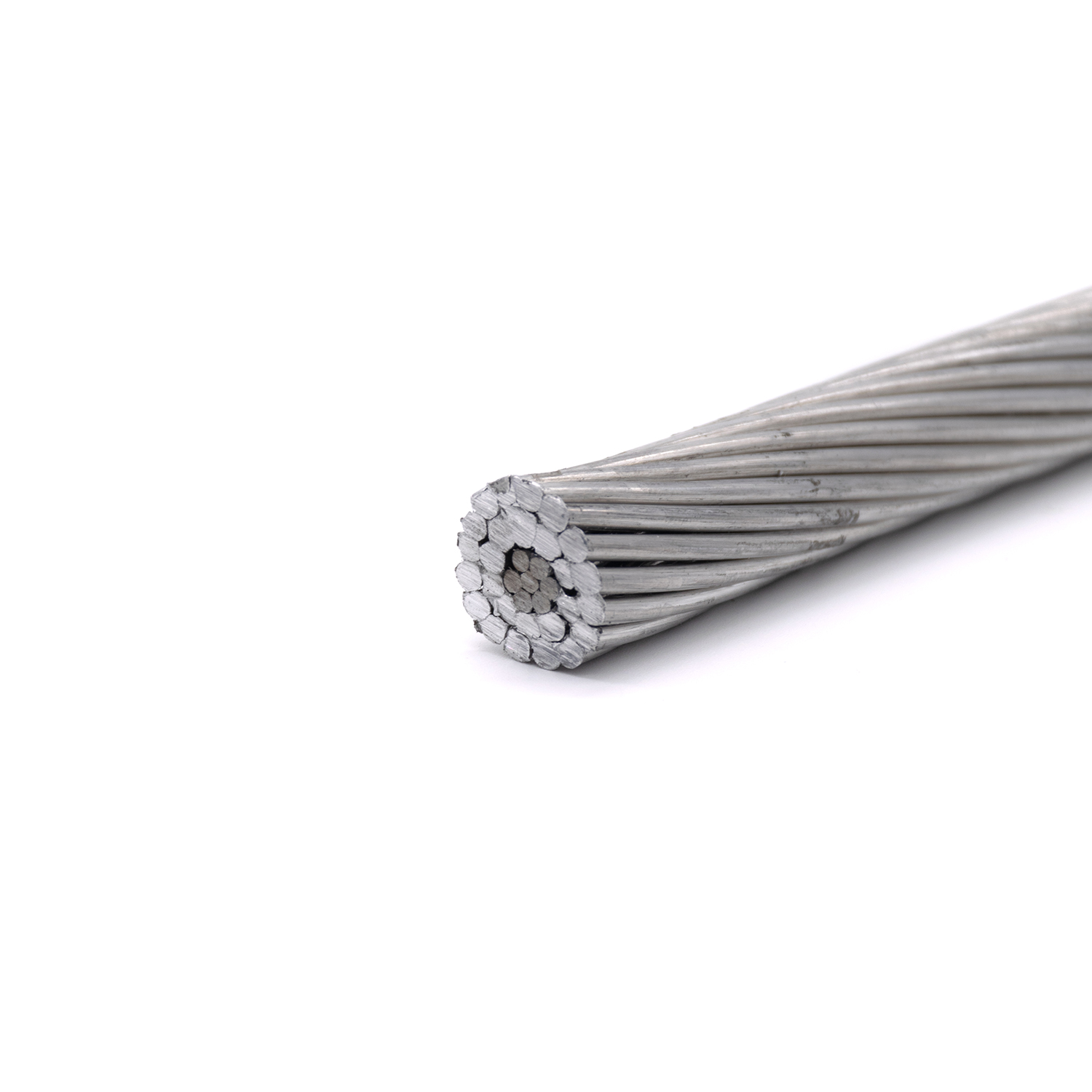

ACSR Conductor

ACSR Conductor Steel core aluminum stranded wire has simple structure, easy installation, easy maintenance, low line cost, large transmission capacity, and is conducive to the laying of special geographical conditions such as crossing rivers and valleys. It is widely used in overhead transmission and distribution lines of various voltage levels.

AAAC Aluminum Conductor

AAAC aluminum alloy conductor provides 1% higher efficiency than steel core aluminum stranded wire of the same cross-section, without power loss. It is widely used in overhead power distribution and transmission lines, especially near ocean coastlines.

The AAAC-400 wire has a pull-to-weight ratio of 11.67km, which can generally be used on large-span lines of approximately 1000m.

95mm ACSR Bare Aluminum Conductor With High Tensile Strength Corrosion Resistance
Conductor Characteristics
ACSR Features
  • Good electrical conductivity
  • Sufficient mechanical strength
  • High tensile strength
  • Tower distance can be enlarged
AAAC Features
  • No power loss
  • High current carrying capacity
  • High fatigue strength
  • More corrosion resistant
Material Specifications
ACSR Material
  • Conductor: AL1350 pure aluminum
  • Steel core: G1A or G2A steel wire
  • Zinc coating steel wire
AAAC Material

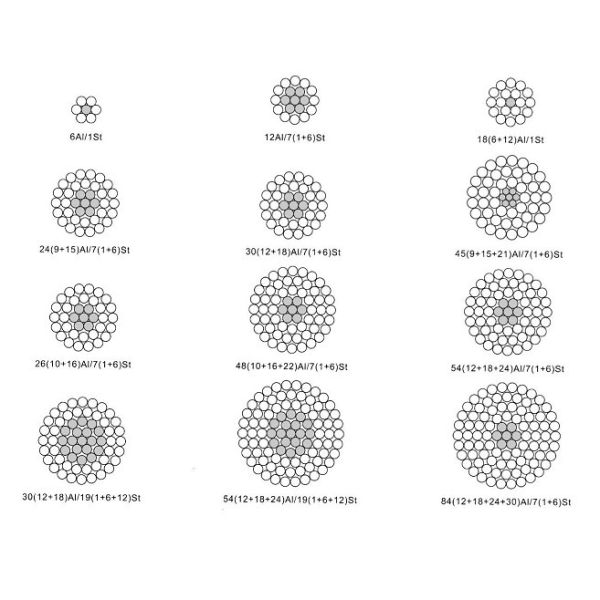

  • Aluminum stranded wire: consists of 7, 19, 37, 91, 127 concentric strands
  • Aluminum alloy: heat-treated magnesium silicate high-strength 6201T81 aluminum alloy
Product Gallery
95mm ACSR Bare Aluminum Conductor With High Tensile Strength Corrosion Resistance 95mm ACSR Bare Aluminum Conductor With High Tensile Strength Corrosion Resistance 95mm ACSR Bare Aluminum Conductor With High Tensile Strength Corrosion Resistance 95mm ACSR Bare Aluminum Conductor With High Tensile Strength Corrosion Resistance 95mm ACSR Bare Aluminum Conductor With High Tensile Strength Corrosion Resistance 95mm ACSR Bare Aluminum Conductor With High Tensile Strength Corrosion Resistance

95mm ACSR Bare Aluminum Conductor With High Tensile Strength Corrosion Resistance95mm ACSR Bare Aluminum Conductor With High Tensile Strength Corrosion Resistance95mm ACSR Bare Aluminum Conductor With High Tensile Strength Corrosion Resistance95mm ACSR Bare Aluminum Conductor With High Tensile Strength Corrosion Resistance95mm ACSR Bare Aluminum Conductor With High Tensile Strength Corrosion Resistance
