Medium Voltage XLPE Insulated Power Cable 15kV Rated Voltage 3 Core Steel Armored Cable

Name: Medium Voltage XLPE Insulated Power Cable 15kV Rated Voltage 3 Core Steel Armored Cable
Brand: Minfeng
Price: 0.1 USD

Buy cheap Medium Voltage XLPE Insulated Power Cable 15kV Rated Voltage 3 Core Steel Armored Cable product

Model Number : xlpe power cable

Brand Name : Minfeng

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

Cores No : 1-5

MOQ : 100

Insulation : XLPE

Delivery Time : 10 Days

Core Mark : Number or Color Strip

Flame Retardant : Available

Conductor Material : copper or Al-alloy

Type : YJV YJV22 YJV32

Outer Sheath Color : Black or as per required

Halogen Free : Available

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Price : 0.1-5

Contact Now

15kV 3 Core SWA Medium Voltage XLPE Insulated Steel Armored 35mm-150mm Power Cable

Product Overview

Medium Voltage 15kV 3 Core SWA 50mm² Copper XLPE Insulated Armored Power Cable designed for reliable power transmission and distribution in demanding industrial applications.

Key Specifications

Conductor Material

Copper or Aluminum

Insulation Material

PVC or XLPE

Jacket

PVC

Application

Construction, Underground

Type

Medium Voltage

Operation Temperature

90°C

Standard

BS, IEC, GB

Certificate

ISO9001-2008, ISO14001-2004

Product Description

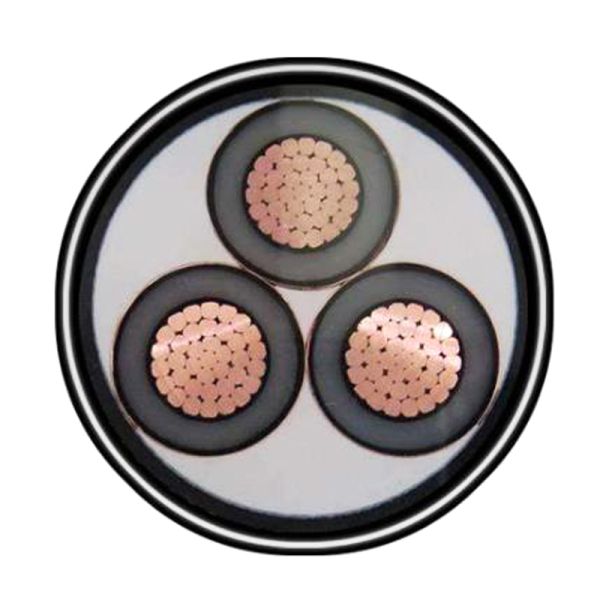

Medium Voltage XLPE Insulated Power Cable 15kV Rated Voltage 3 Core Steel Armored Cable

XLPE Insulated Power Cable - Power cables are used to transmit and distribute electrical energy. These cables are commonly employed in urban underground power grids, power station outgoing lines, internal power supply in industrial and mining enterprises, and underwater transmission lines across rivers.

YJV cables serve as backbone cables in power transmission systems, typically installed in urban underground passages or buried underground. Their robust construction ensures reliable performance in demanding environments.

Technical Specifications

Parameter	Specification
Brand	Minfeng
Product Name	YJV (YJLV), Copper (aluminum) core XLPE insulated PVC sheathed power cable
Rated Voltage	0.6/1KV 6/10KV; 8.7/15KV; 12/20KV; 18/20KV; 21/35KV; 6/35KV
Voltage Level	Low voltage cable, Medium voltage cable, High voltage cable, Ultra high voltage cable
Common Sizes	1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², etc.
Number of Cores	Single core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores, 4+1 cores, etc.
Material	Copper (aluminum) conductor, polyethylene insulator, filler (nylon, PVC composite material, etc.), polyvinyl chloride outer sheath
Standard	GB/T12706.1-2008, IEC60502-1-1997
Types of YJV (YJLV)	Ordinary type, flame-retardant type, fire-resistant type, low-smoke halogen-free type
Armoured	Steel tape armored, steel wire armored
Application	Power distribution engineering, power transmission engineering, electromechanical and hydropower installation engineering, power transmission, power supply installation system, control system, etc.

Application Instructions

Rated voltages: 0.6/1kV
Ambient temperature for cable installation: ≥0℃
Maximum conductor temperature in normal operation: ≤90℃
Maximum operating temperature of conductor when cable short-circuited (5s maximum duration): ≤250℃

Armored Use Characteristics

Withstand external tension: 33 > 32 > 23 > 22

Steel Tape Armor

Suitable for indoor installations, tunnels, cable trenches, or buried applications requiring radial mechanical external force resistance.

Steel Wire Armor

Ideal for indoor installations, tunnels, cable trenches, shafts, or buried laying applications requiring tension resistance.
