Underground Steel Wire Armoured Cable With XLPE Insulation Aluminum Conductor

Brand Name : Minfeng

Model Number : armored cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Productname : Armoured Cable

Standard : AISI, ASTM, BS, DIN, GB, JIS

Cabletype : Armoured

Sheathmaterial : PVC or PE

Cablesize : Varies from 1.5mm² to 1000mm²

Conductormaterial : Copper or Aluminum

Flameretardant : Yes/No

Insulationmaterial : PVC, XLPE, or Rubber

Contact Now

Armoured Cable 4 Core 35mm 50mm 70mm 95mm 120mm 185mm 240mm Aluminum Conductor Underground XLPE Insulated Power Cable

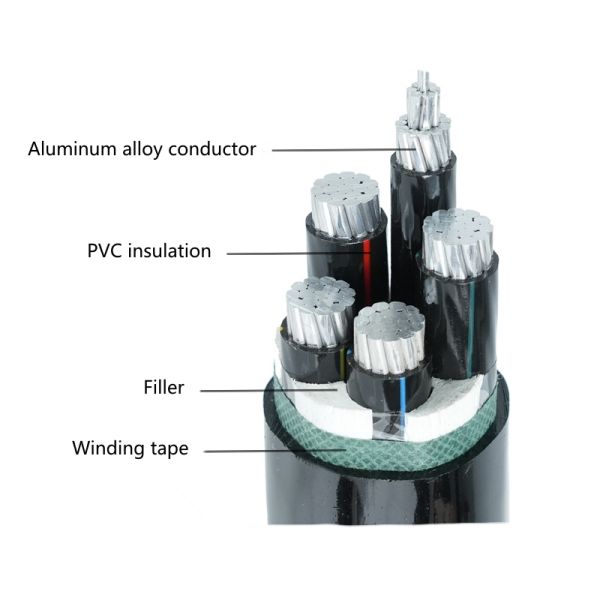

Product Construction
  • Conductor: Solid or stranded copper/aluminum
  • Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
  • Filler: Polypropylene filament with lapped binding tape
  • Binder: Binding tape
  • Inner sheath: Polyvinyl chloride (PVC)
  • Armouring: Single Core: AWA (Aluminium Wire Armour)
    Multi Core: SWA (Steel Wire Armour) STA (Steel Tape Armour)
Underground Steel Wire Armoured Cable With XLPE Insulation Aluminum Conductor Underground Steel Wire Armoured Cable With XLPE Insulation Aluminum Conductor
Applications

Copper aluminum conductor, XLPE insulated, tape armoured and PVC sheathed. Suitable for installations:

  • Indoors: Mostly in power supply stations
  • Outdoors: In cable ducts, underground, and on cable trays for industries, switch-boards and power stations

Due to excellent laying and mechanical characteristics, this cable is ideal when mechanical protection is required or in applications where mechanical damages are expected to occur.

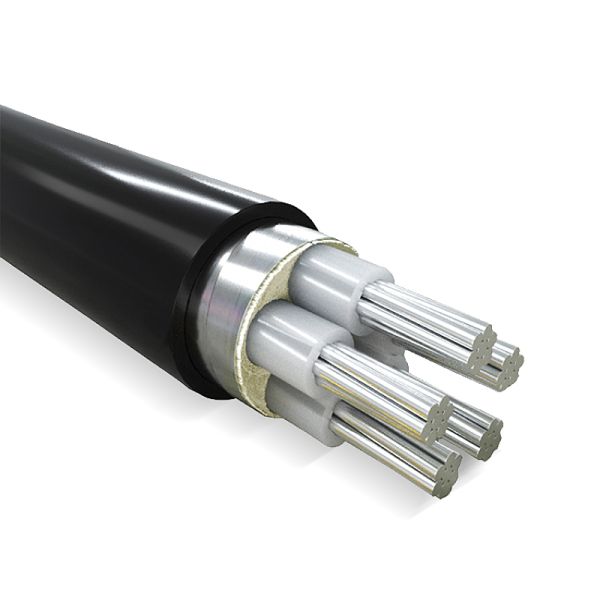

Underground Steel Wire Armoured Cable With XLPE Insulation Aluminum Conductor
Product Features
  • High Temperature Resistance: XLPE insulation uses chemical or physical methods to create a three-dimensional network structure, allowing long-term operation at 90°C with lifespan up to 40 years
  • Excellent Insulation Performance: Retains polyethylene insulation properties with improved insulation resistance
  • High Mechanical Properties: Enhanced hardness, stiffness, wear resistance and impact resistance
  • Chemical Resistance: Strong resistance to acids, alkalis and oils
  • Environmental Safety: Combustion products are water and carbon dioxide, meeting fire safety requirements
  • Temperature Ratings: Maximum conductor temperature 90°C during normal operation, 250°C during short circuit (max 5 seconds duration)

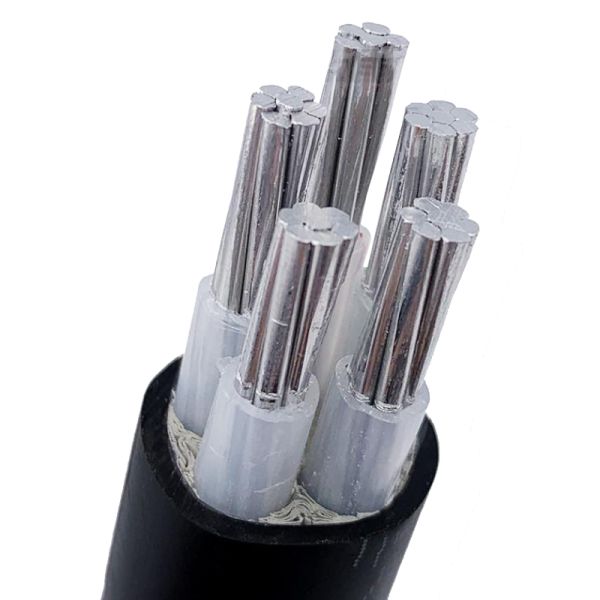

Underground Steel Wire Armoured Cable With XLPE Insulation Aluminum Conductor
Cable Specifications

Insulated PVC/XLPE sheathed power cable used for power transmission and distribution systems with rated voltages of 0.6/1, 1.8/3, 3.6/6, 6/10, 8.7/10, 8.7/15, 12/20, 21/35, 26/35KV.

Cable Types & Applications
  • YJV, YJLV: XLPE insulated, PVC sheathed - suitable for indoors, tunnels, pipes, and buried in soil (not subject to mechanical force)
  • YJV22, YJLV22: XLPE insulated, steel tape armored PVC sheathed - suitable for indoor, tunnel, pipe penetration, and buried in soil
  • YJV32, 42, YJLV32, 42: XLPE insulated, steel wire armored PVC sheathed - suitable for shafts, water, places with drop, and can withstand external forces
Technical Specifications
  • Normal Operation Temperature: 70°C for PVC insulation, 90°C for XLPE insulation
  • Short Circuit Temperature: PVC insulation: 160°C (≤300mm²), 140°C (>300mm²); XLPE insulation: 250°C
  • Installation Temperature: Ambient temperature not less than 0°C
  • Minimum Bending Radius: Single core: unarmored 20D, armored 15D; Multi-core: unarmored 15D, armored 12D (D = cable outer diameter)
  • Cable Breaking Force: Aluminum core: 40*S (N); Copper core: 70*S (N)
Underground Steel Wire Armoured Cable With XLPE Insulation Aluminum Conductor
