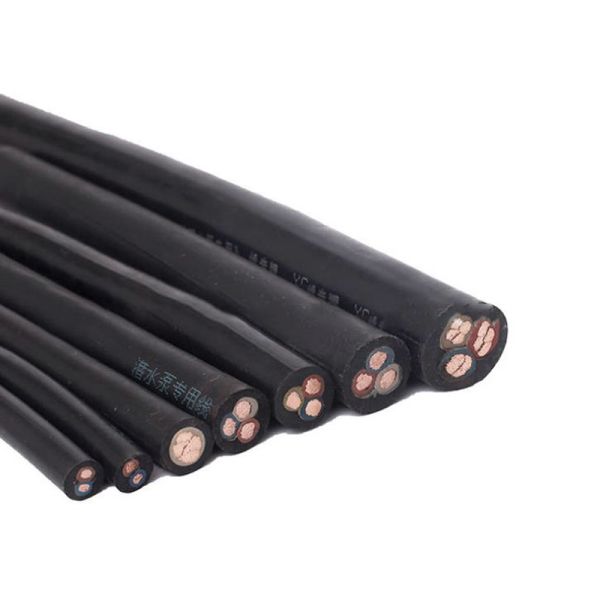

Neoprene Rubber Copper Welding Cable 10mm 25mm 35mm 50mm

Name: Neoprene Rubber Copper Welding Cable 10mm 25mm 35mm 50mm
Brand: Minfeng
Price: 0.1 USD

Buy cheap Neoprene Rubber Copper Welding Cable 10mm 25mm 35mm 50mm product

Brand Name : Minfeng

Model Number : rubber cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Productname : Welding Cable

Cable Core Material : Copper wire

Packing : 100m/roll

Production Time : 10days

Standard : BS IEC ASTM DIN

Jacket : Rubber

Contact Now

Product Description

^{GENERAL RUBBER SHEATHED FLEXIBLE CABLE}
^Standard	^{GB 5013-1997; Flame retardant (VDE 0482, EN 50265-2-1 and IEC 60332-1)}
^Insulation	^{Nitrile-Butadiene-PVC or Rubber Material or EPR,}^EPDM
^Sheath	^{Nitrile-Butadiene-PVC or Rubber Material or CSP,CPE}
Rated Voltage ( U0/U )	^{300/500V; 450/750V;}
^Conductor	^{Flexible Bare annealed copper wire or Tinned Copper wire}
^Color	^{Brown, gray, black, orange, red or yellow-blue, yellow-green.}
NO.of Core	^{1, 2, 3, 4, 5, 3+1}
Nominal Sectional Area ^{( mm2 )}	^0.3~0.5,0.75~6, 1.5~6, 1.5~400, 2, 3, 4, 5, ^1~95,1~150, 1~25, 1.5~150.
Max.Permissible operating temperature of cable conductor	^60℃,
Ambient temperature ofinstallation	^{YC installation:} ^{YC type: -40℃ ;} ^{YCW type: >-15℃;}
Cable bending radius	^{not less than 5 times the outer diameter of the cable;} ^{"w" derivative cable has capacities of weatherresistance and oil-resistance and be suitable foe the occasions ofoutdoors or oil contact.}
^Application	^{The product wil be applied to the drive devices, household electric instruments, all kinds of portable electrical equipments and electromotive tools at A.C rated voltage U /U up to and including 450/750V.}

_NAME	_MODEL	_USAGE	_FEATURE
_{Light weight rubber cable}	_YQ,YQW	_{Household appliances, small electric equipment}	_{Soft, light and good bending performance;} _{YQW has weather resistance and certain oil resistance}
_{Medium-sized rubber cable}	_YZ,YZW	_{Industry, widely used in agricultural electrification}	_{YZW has weather resistance and certain oil resistance}
_{Heavy rubber cable}	_YC,YCW	_{Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc.}	_{Has good versatility, complete series specifications, good performance and stability;} _{YCW has weather resistance and certain oil resistance}
_{Waterproof rubber cable}	_JHS,JHSB	_{Diving motor}	_{Good bending performance, can withstand frequent movement}

Neoprene Rubber Copper Welding Cable 10mm 25mm 35mm 50mm

_{Nominal section area} _(mm2)	_{No./diameter of stranding} _(mm)	_{Nominal sheath thickness} _(mm)	_{Overall diameter} _(mm)		_{Max. conductor resistance at 20℃} _(Ω/km)
_{Nominal section area} _(mm2)	_{No./diameter of stranding} _(mm)	_{Nominal sheath thickness} _(mm)	_Min.	_Max	_{Without tinned}	_{With tinned}
₁₀	_322/0.20	_1.8	_7.5	_9.7	_1.91	_1.95
₁₆	_513/0.20	₂	_9.2	_11.5	_1.16	_1.19
₂₅	_798/0.20	₂	_10.5	₁₃	_0.758	_0.78
₃₅	_1121/0.20	₂	_11.5	_14.5	_0.536	_0.552
₅₀	_1596/0.20	_2.2	_13.5	₁₇	_0.379	_0.39
₇₀	_2214/0.20	_2.4	₁₅	_19.5	_0.268	_0.276
₉₅	_2297/0.20	_2.6	₁₇	₂₂	_0.198	_0.204
₁₂₀	_1702/0.30	_2.8	₁₉	₂₄	_0.161	_0.164
₁₅₀	_2135/0.30	₃	₂₁	₂₇	_0.129	_0.132
₁₈₅	_1443/0.40	_3.2	₂₂	₂₉	_0.106	_0.108
₂₄₀	_1908/0.40	_3.8	₂₅	₃₅	_0.0801	_0.0817
............

_Size	_{Strands No.}	_{Insulation thickness}
_0.5mm2	_16/0.2mm	_0.6mm
_0.75mm2	_24/0.20mm	_0.6mm
_1.0mm2	_32/0.20mm	_0.6mm
_1.5mm2	_48/0.20mm	_0.7mm
_2.5mm2	_49/0.25mm	_0.8mm
_4mm2	_56/0.30mm	_0.8mm
_6mm2	_84/0.30mm	_0.8mm
_10mm2	_84/0.39mm	_1.0mm
_16mm2	_133/0.39mm	_1.0mm

Attention: We can provide more information than above data, if needed.The above are just some examples.

^{WELDING CABLE}
^{Core operating temperature}	^{no more than 65°C}
_Type	^{YH, Matural rubber sheathed for Welding Cable}
_Type	^{YHF, Horoprene Rubber or Other Syntheitic sheathed Welding Cable}
^Application	^{This product suitable for the welding machine of which voltage to the ground is not more than dc 200v and pulsating current value is 400v}

 Welding Cable Technicial Parameters

_{Nominal section area} _(mm2)	_{No./diameter of stranding} _(mm)	_{Nominal sheath thickness} _(mm)	_{Overall diameter} _(mm)		_{Max. conductor resistance at 20℃} _(Ω/km)		Reference Weight	Reference Weight
_{Nominal section area} _(mm2)	_{No./diameter of stranding} _(mm)	_{Nominal sheath thickness} _(mm)	_Min.	_Max	_{Without tinned}	_{With tinned}	YH	YHF
₁₀	_322/0.20	_1.8	_7.5	_9.7	_1.91	_1.95	¹⁴⁶	^153.51
₁₆	_513/0.20	₂	_9.2	_11.5	_1.16	_1.19	^218.9	^230.44
₂₅	_798/0.20	₂	_10.5	₁₃	_0.758	_0.78	^316.6	^331.15
₃₅	_1121/0.20	₂	_11.5	_14.5	_0.536	_0.552	⁴²⁶	^439.87
₅₀	_1596/0.20	_2.2	_13.5	₁₇	_0.379	_0.39	^592.47	^610.55
₇₀	_2214/0.20	_2.4	₁₅	_19.5	_0.268	_0.276	⁷⁹⁰	^817.52
₉₅	_2297/0.20	_2.6	₁₇	₂₂	_0.198	_0.204	^1066.17	^1102.97
₁₂₀	_1702/0.30	_2.8	₁₉	₂₄	_0.161	_0.164	^1348.25	^1392.55
₁₅₀	_2135/0.30	₃	₂₁	₂₇	_0.129	_0.132	^1678.5	^1698.72
₁₈₅	_1443/0.40	_3.2	₂₂	₂₉	_0.106	_0.108	^1983.8	^2020.74
₂₄₀	_1908/0.40	_3.8	₂₅	₃₅	_0.0801	_0.0817	/	/
............

^{MINING CABLE}
^{Power frequency rated voltage U/U}	^{0.38/0.66kV, 0.66/1.14kV, 1.9/3.3kV}
^{Max.permissibte operating temperature of cable conductor}	^{65℃ for 0.38/0.66kV;} ^{0.66/1.14kV and 90°C for 1.9/3.3kV}
^{Min permissibie operating ambient temperature of cable}	^-35℃.
^{Bending radius of cable}	^{shall not be 6 times less than cable OD.}
^Application	^{used for the source connection for coal cutter and analogous eggplant atsated voltage up to and including 1.9/3.3kV}

^TYPE		_NAME	_APPLICATION
^{NON-FIRE PROPAGATING}	^{FLAME RETARDANT}	_NAME	_APPLICATION
^UC	^MC	^{Rubber sheathed flexible cable for mines cable for coal-cutting mining}	^{0.38/0.66kV Driller connection under the mine shaft}
^UCP	^MCP	^{Screened Rubber-jacketed flexible cable for coal-cutting machine}	^{0.38/0.66kV, 0.66/1.14kV, 1.9/3.3kV Driller connection under the mine shaft}
^UY	^MY	^{Rubber sheathed, movable and flexible cable for mines}	^{0.38/0.66kV Connecting various coal cutters and similar equipment under the mine shaft}
^UYP	^MYP	^{Screened, Rubber sheathed, movable and flexible cable for mines}	^{0.38/0.66kV, 0.66/1.14kV Connecting various coal cutters and similar equipment underthe mine shaft}
^UYQ	^MYQ	^{Rubber sheathed light-duty flexible cables for mines}	^{0.3/0.5kV Connecting various coal cutters and similar equipment under the mine shaft}
^UZ	^MZ	^{Electric drill Rubber cables for mines}	^{0.3/0.5kVPower connection of various movable coal cutters under the mine shaft}
^UZP	^MZP	^{Electric drill shielded Rubber cables for mines}	^{0.3/0.5kV Power connection of various movable coal cutters under the mine shaft}

^{Waterproof Rubber Sheathed Cable}
^Model	^{JHS; JHSB}
^{Rated Voltage}	^{450/750v; 300/500v and below diving click}
^{NO.of Core}	^{1, 3, 4, 3+1}
^{Nominal Sectional Area ( mm2 )}	^{1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70}
^{Long-term allowable operating temperature}	^{no more than 65°C} ^{no more than 85°C( Submersible pump for power transmission )}
^Features	^{1. It has good electrical insulation performance under long-term water immersion and large water pressure.} ^{2. The waterproof rubber sheathed cable has good bending performance and can withstand frequent movement} ^{3. High-density glue is selected with waterproof function.}
^Application	^{Waterproof rubber sheathed cable for power transmission on diving taps with AC voltage of 500v and below.}
^Application	^{It is suitable for processing equipment such as submersible pumps, coal mines, underwater operations, underwater landscape lights, etc.}

^{Silicone Rubber Cable}
^{Executive standard}	^{GB12666-90 for flame retardant and fire resistance test}
^{AC rated voltage}	^{U0/U 0.6/1KV；} ^{U0/U 450/750V( Silicone Rubber Control Cable )}
^{Maximum working temperature}	^180℃
^{Minimum ambient temperature}	^{silicone rubber sheath:} ^{fixed laying -60 ℃, non-fixed laying -20 ℃}
^{Cable installation and laying temperature}	^{not lower than -25℃} ^{not lower than -20℃( Silicone Rubber Control Cable )}
^{Allowable bending radius of the cable}	^{1. the minimum cable is 10 times the outer diameter of the cable} ^{2. Unarmoured cable min. 6 times the outer diameter of the cable( Silicone Rubber Control Cable )}
^Features	^{heat-resistant radiation, cold resistance, high temperature resistance, voltage resistance, acid and alkali resistance and corrosive gas, waterproof, etc.}
^Advantages	^{1. It has good thermal stability and stable electrical performance in high temperature, high and low temperature, high cold and corrosive environments.} ^{2. Soft structure, convenient laying, outstanding anti-aging performance and long service life.}
^Application	^{1. Used for power transmission lines for fixed laying or connecting cables for mobile electrical appliances with AC rated voltage of 0.6/1KV and below.} ^{2. Silicone rubber control cable is suitable for connecting wire or signal transmission of electrical instruments for mobile or fixed laying with AC rated voltage of 450/750V and below.} ^{3. Widely used in metallurgy, electric power, petrochemical, electronics, automobile manufacturing and other industries.}

^{Silicone Rubber Power Cable}		^{Silicone Rubber Control Cable}
^Model	^Name	^Model	^Name
^YGC	^{Silicone rubber insulated sheathed power cable}	^KGG	^{Silicone Rubber Insulated and Sheathed Control Cables}
^YGCR	^{Silicone rubber insulated sheathed mobile power flexible cable}	^KGGR	^{Silicone Rubber Insulated and Sheathed Control Flexible Cable}
^YGCP	^{Silicone rubber insulated sheathed copper braided shielded power cable}	^KGGP	^{Silicone rubber insulated and sheathed copper wire braided shielded control cable}
^YGC22	^{Silicone rubber insulated sheathed steel tape armored power cable}	^KGGRP	^{Silicone rubber insulated and sheathed copper wire braided shielded control flexible cable}
^JGG	^{Silicone Rubber Insulation Sheath Installation Wire}	^KGGRP1	^{Silicone rubber insulated and sheathed tinned braided shielded control flexible cable}
^JGGR	^{Silicone rubber insulating sheath mobile installation cord}	^KFG	^{Fluoroplastic insulated and silicone rubber sheathed control cable}
^JGGP	^{Silicone rubber insulated sheathed copper braided shielded installation wire}	_{Note: ZR is added before the model of flame retardant silicone rubber cable, and the copper wire in the conductor core can be tinned}
^JHXG	^{Silicone rubber insulated motor lead wire}
